The ultimate vehicle enthusiast app for the road and track
Modern UI. PIP camera. GPS. OBD. Sensor data. Heart rate.
Lap timing for the racetrack
Multi-stop routes for the road

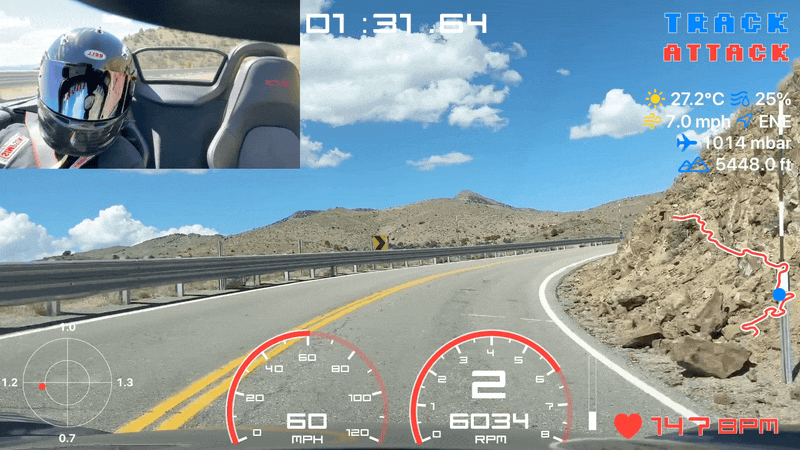

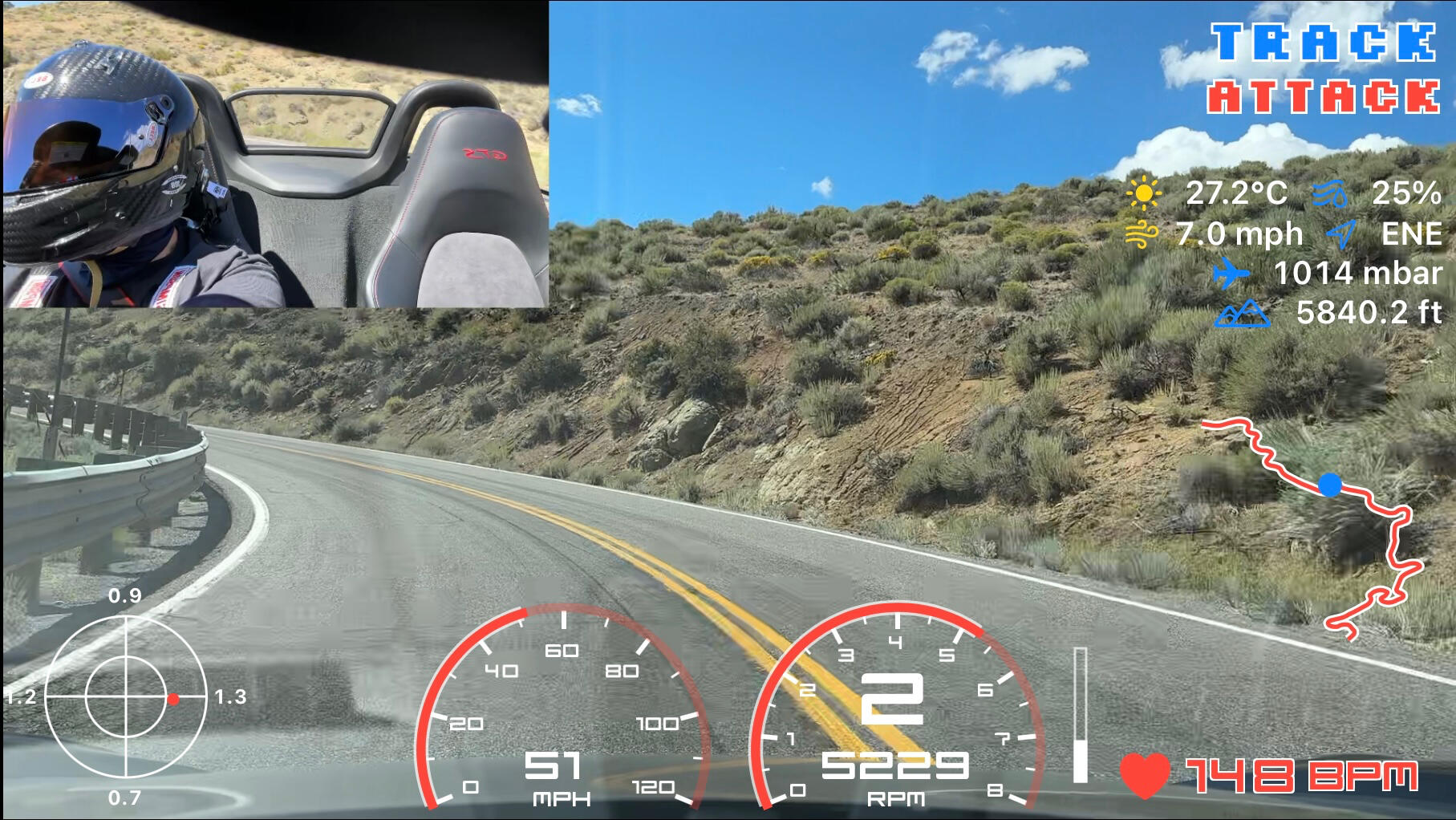

Picture-in-picture video
Instantly share video & data
01.
Start your engines

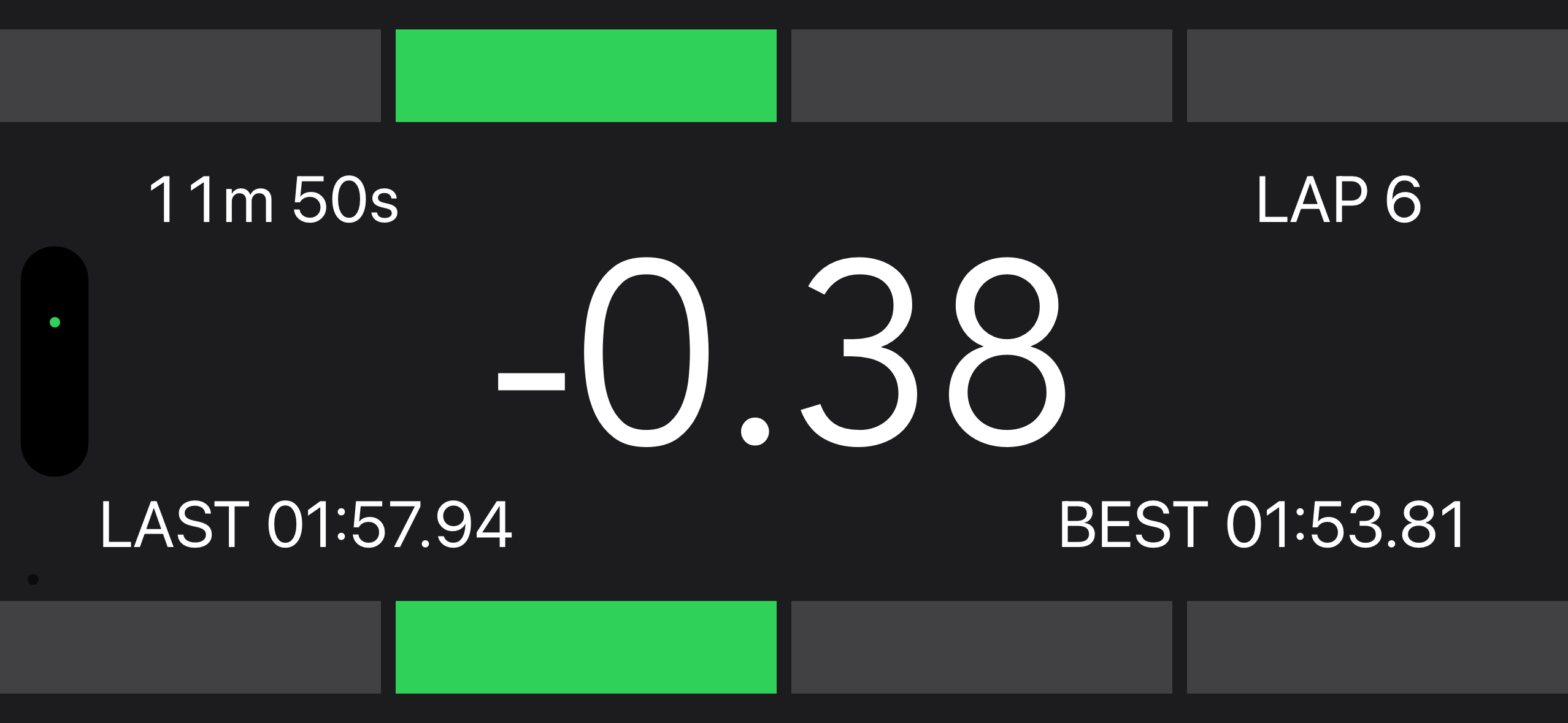

The ultimate lap timer
Clear easy to read interface

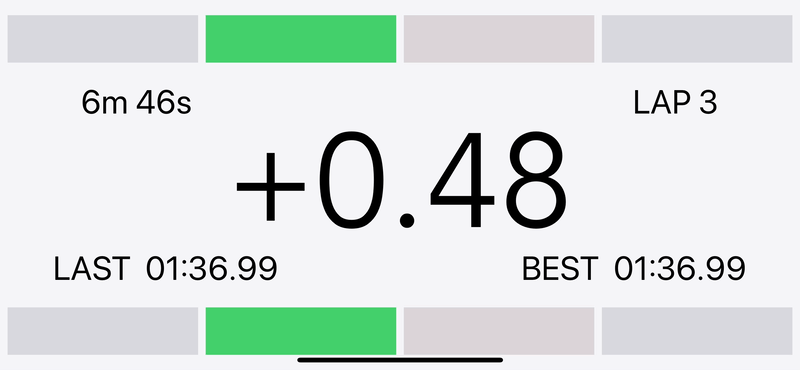

Visual bars with lap time & delta
Automatic lap time calculation
Full data logging with video
02.
The great outdoors
Spirited drives and road trips

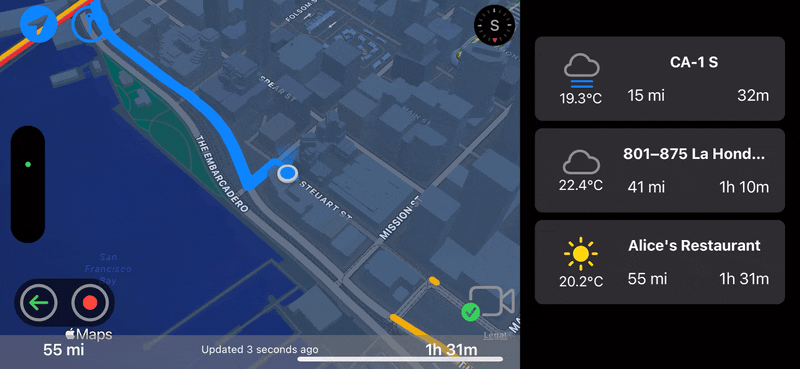

Plan, create, and share routes with unlimited stops

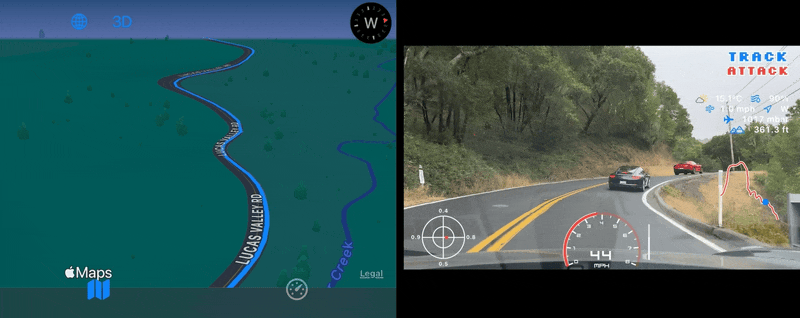

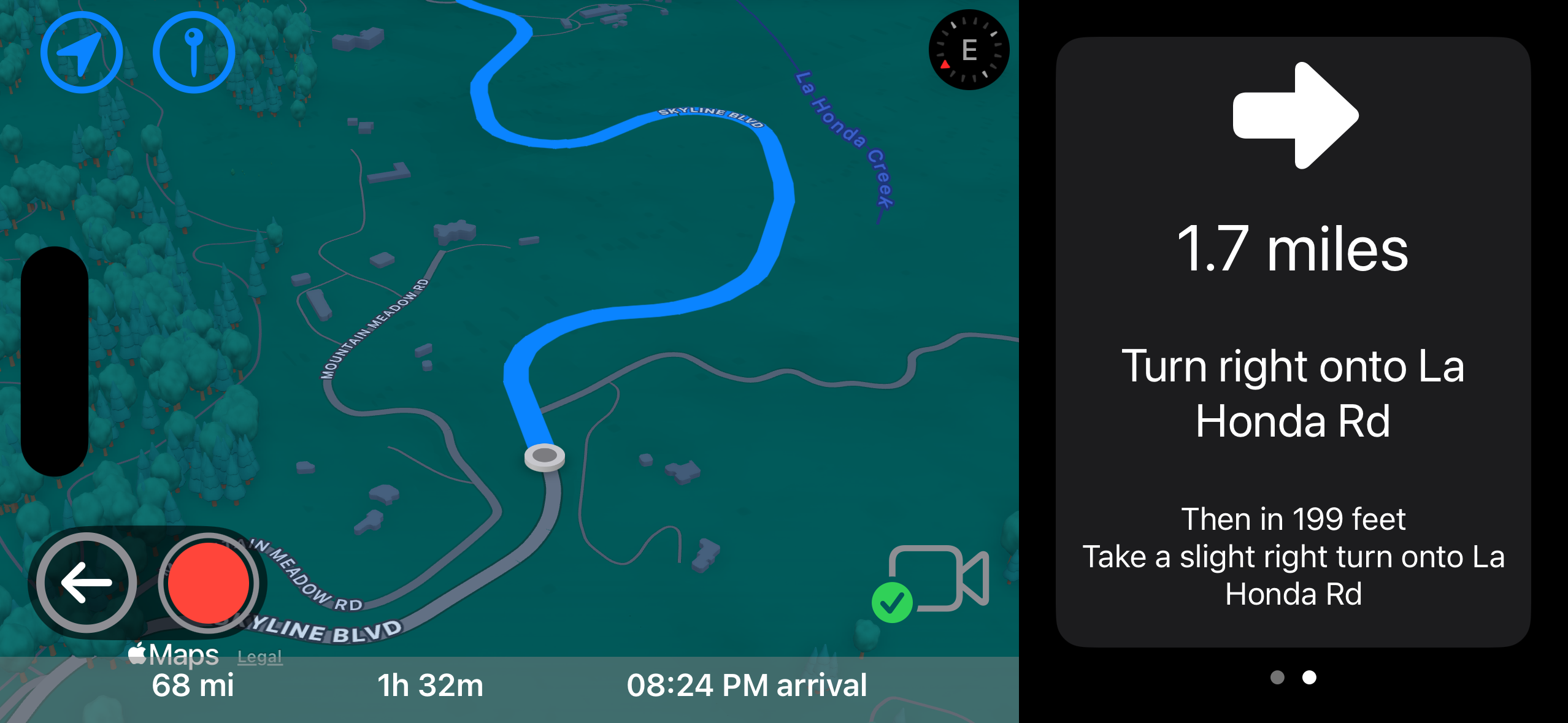

Video & data recording with navigation
Distance, time, & weather at each stop
Offline navigation
03.
One device, two cameras
GoPro not required
Single or dual camera video uses front and back cameras
Customizable camera layout
Customizable video overlays
Instantly edit & share video from photo gallery
04.
Review. Visualize. Share.
Video. Maps. Charts. Data.
Share data directly from the app with AirDrop
Share routes with a link or AirDrop
Share videos directly from the Photo Gallery
Sleek intuitive user interface supports dark and light mode
Accessories

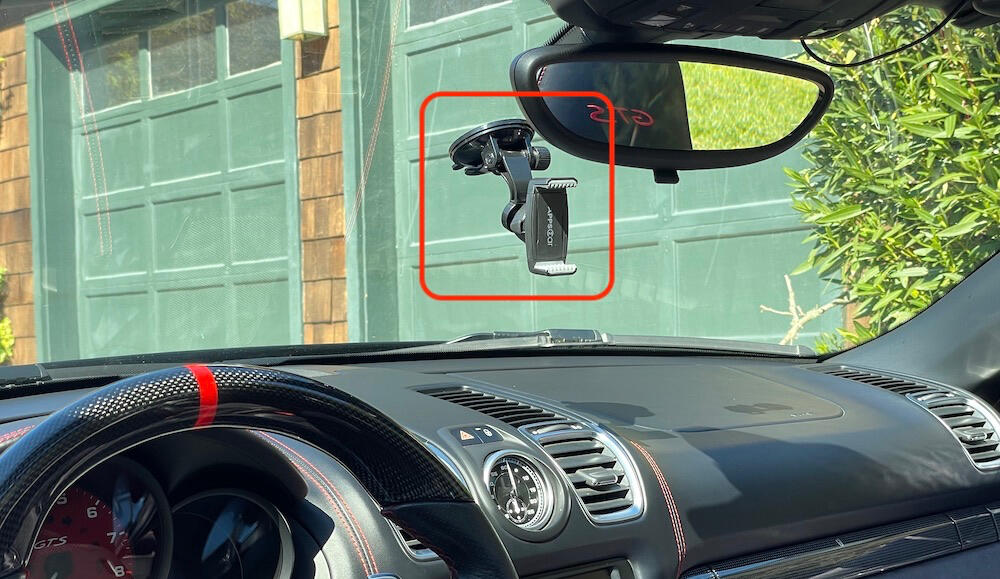

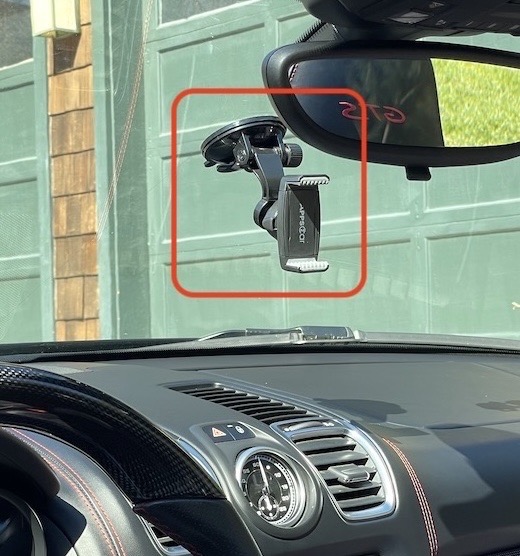

Windscreen mount
For optimal GPS reception and video recording the phone should be mounted on the windshield. Our favorite mount is a low cost, adjustable, sturdy, and low profile suction cup mount.
We mount the phone horizontally in landscape orientation right under the rear view mirror. While installing the mount to your windshield you can preview the video while fine tuning the mount location by starting a session and tapping the camera icon for a live camera preview.

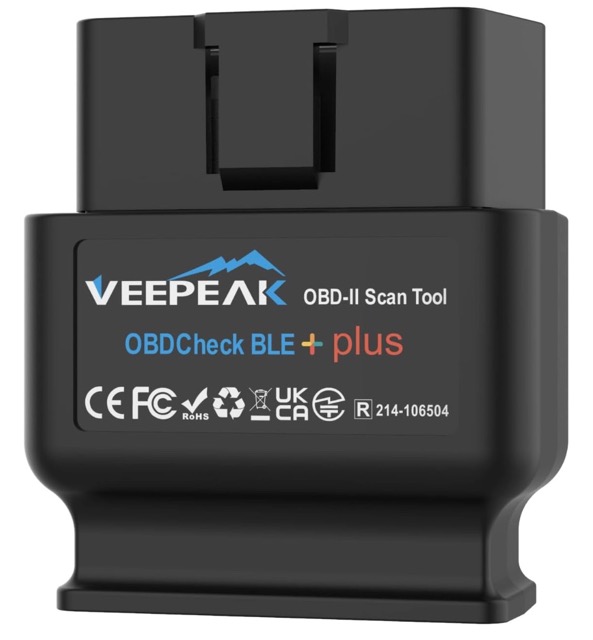

Bluetooth OBD adaptor
A Bluetooth OBD adaptor allows Track Attack to record vehicle RPM, throttle position, wheel speed, fluid temperatures, and other parameters. Our recommended BLE OBD adaptor is the Veepeak BLE+ unit which is both low-cost and reliable. Other units may work but this is the OBD adaptor tested to be compatible with Track Attack.
Note that very low-cost OBD adaptors use counterfeit chips and will not function correctly.

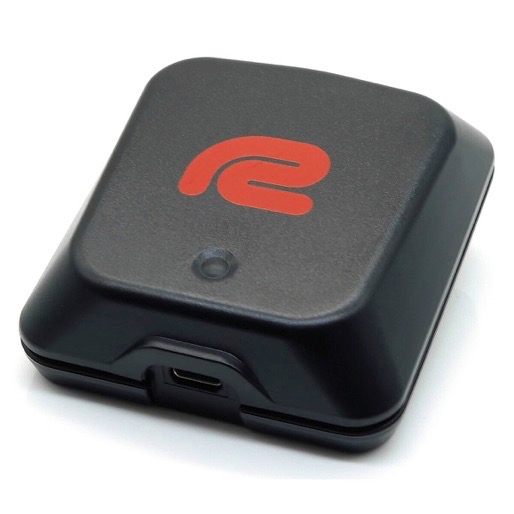

External GPS: RaceBox Mini
An external GPS allows Track Attack to record location and speed at higher frequency and accuracy than the phone internal GPS. Our recommended and only supported external GPS is the RaceBox Mini.RaceBox is offering Track Attackers 15% off your purchase! Use code "TRACKATTACK15" to receive 15% off!
USE CODE "TRACKATTACK15" to receive 15% off your purchase!
Tech Specs
| Sensor | Data |
|---|---|
| Camera | Fully configurable single camera or dual camera (picture-in-picture). Selectable front or back camera as main or PIP camera. PIP placement: top left, top right, bottom left, bottom right. PIP size: small/medium/large. Video stabilization: low/medium/high. Camera lens: telephoto, wide, ultrawide. Resolution: 1080p/4K single camera, 1080p PIP. Frame rate: 30/60 FPS single camera, 30 FPS dual camera. |
| Location | latitude, longitude, altitude, speed, course, horizontal accuracy, vertical accuracy, speed accuracy, course accuracy. |
| Inertial | tri-axial accelerometer & gyroscope |
| Magnetic | tri-axial magnetic vectors, magnetic heading |
| Barometric | barometric pressure |
| OBD | engine speed (RPM), throttle position, vehicle speed, engine load, intake air temperature (IAT), intake manifold absolute pressure (MAP), water temperature, oil temperature. Vehicle dependent: not all vehicles support all OBD parameters. |
| External GPS | RaceBox Mini 25Hz GPS: latitude, longitude, altitude, speed, course, horizontal accuracy, vertical accuracy, speed accuracy, course accuracy, number of SVs, tri-axial accelerometer & gyroscope |
| Weather | temperature, feels like temperature, max/min temperature, pressure, humidity, visibility, clouds, sunrise time, sunset time, wind speed, wind direction |
| File export | JSON: Track Attack native format, all available data with timing. CSV: import to other tools. Video: native format saved in Photo Gallery |
*PIP camera requires iPhone XR, XS, or newer
*OBD data requires a supported OBD BLE adaptor
